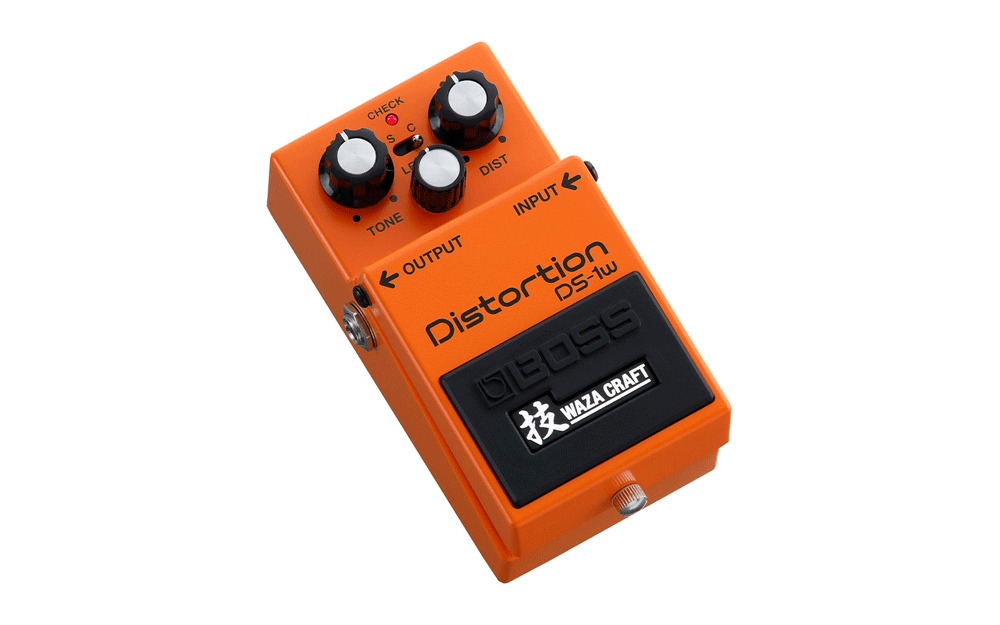

Boss DS-1W Distortion Pedal

Boss DS-1W Distortion Pedal

The Classic BOSS Distortion, Enhanced with Waza Craftsmanship
Introduced in 1978 among the earliest models in the BOSS compact series, the orange DS-1 redefined the sound of distortion and remains as influential today as ever. Its hard-edged attack and smooth sustain have made it the best-selling compact effect to date, and its distinctive tone is behind the signature sounds of a long list of rock and alternative icons. With the DS-1W, this legendary stomp joins other BOSS classics in the Waza Craft series, fusing the look and character of the original with a newly revised discrete all-analog circuit for expanded range and versatility.

Features

• Special edition Waza Craft pedal for the ultimate BOSS tone experience
• Newly revised two-stage gain circuit with discrete analog components
• Standard mode delivers the legendary sound of the original DS-1
• Custom mode provides fatter distortion tones with focused midrange and increased touch response
• Versatile Tone knob provides wide-ranging frequency control fine-tuned for each mode
• Two modes offer increased versatility when the pedal is used as a gain booster
• Premium buffer for clean and clear tone when bypassed
• BOSS five-year warranty

SPECIFICATIONS

Nominal Input Level:  -20 dBu

Input Impedance:  1 M ohms

Nominal Output Level:  -20 dBu

Output Impedance:  1 k ohms

Recommended Load Impedance:  10 k ohms or greater

Bypass:  Buffered bypass

Controls

Pedal switch
Mode switch
DIST knob
LEVEL knob
TONE knob

Indicator:  CHECK indicator (Serves also as battery check indicator)

Connectors

INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type

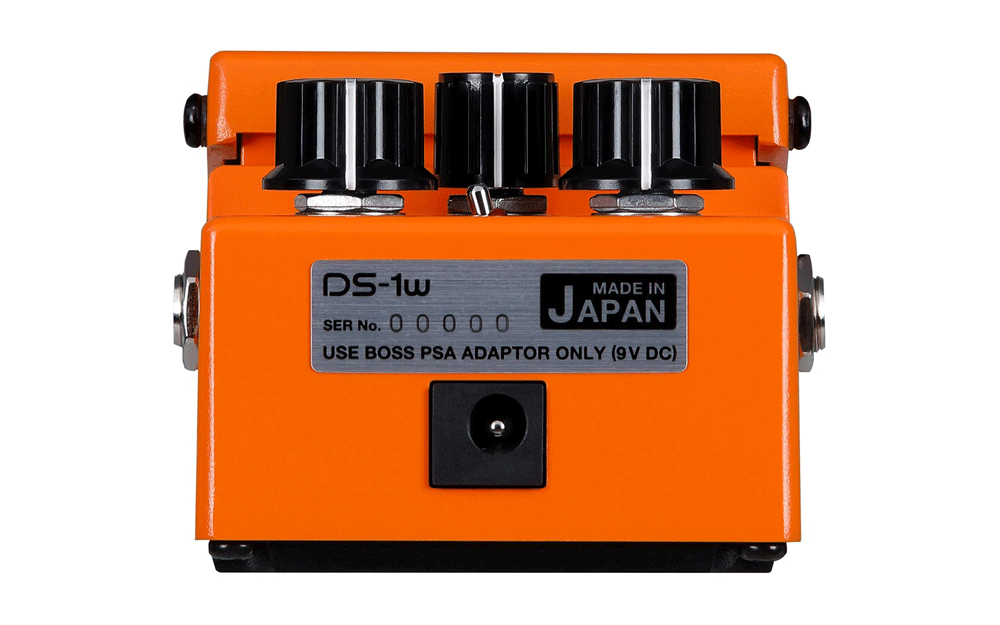

DC IN jack

Power Supply:  Alkaline battery (9 V, 6LR61 or 6LF22) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately)

Current Draw:  15 mA

Expected battery life under continuous use

Alkaline: Approx. 50 hours
Carbon: Approx. 25 hours

*These figures will vary depending on the actual conditions of use.

Accessories

Leaflet   (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Alkaline battery (9 V, 6LR61 or 6LF22)

Options (sold separately)

AC adaptor: PSA series

SIZE AND WEIGHT

• Width:  73 mm/2-7/8 inches
• Depth:  129 mm/5-1/8 inches
• Height:  59 mm/2-3/8 inches
• Weight (including battery):  430 g/1 lb

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
