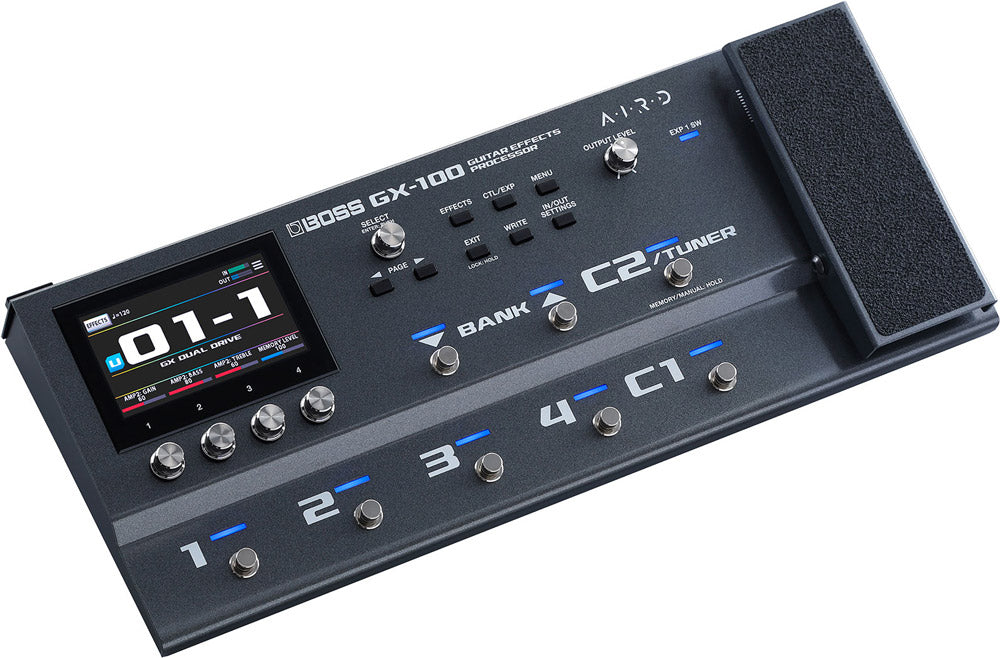

Boss GX-100 Guitar Effects Processor

Boss GX-100 Guitar Effects Processor

Color Your Music with Inspiring Tone
Fusing advanced BOSS tone technologies into a sleek, ultra-modern hardware design, the inspiring GX-100 delivers top-level performance everywhere you play. Explore 23 AIRD amplifiers and over 150 effects derived from the flagship GT-1000, and craft great sounds in seconds with the intuitive color touch display. Up to 15 simultaneous effect blocks provide unlimited tone possibilities, coupled with deep real-time command via onboard footswitches, an expression pedal, and external control support.

Description

Authentic Amps and Cabs
The GX-100 provides superior tone and natural tube amp feel in any playing situation, thanks to AIRD technology backed by our refined Tube Logic approach. AIRD is infused into the DNA of every GX-100 guitar and bass amplifier, while AIRD Output Select types let you perfectly tailor the sound for any destination, whether it’s an amp input, FRFR monitor, or house PA. A wide selection of onboard speaker cabs are also available, plus slots for importing your own speaker IRs via USB.

Exceptional Effects
With over top-quality 150 effects from the vast BOSS library, you’re able to realize nearly any sound you can imagine with the GX-100. Numerous overdrives and distortions are available, plus BOSS classics like Slow Gear, Octave, and more. There’s also a diverse range of mod effects, delays, and reverbs, along with many effects specially tuned for bass. And with the send/return jacks, you can integrate favorite stomps or your amp’s effects loop into the GX-100 ecosystem.

Craft Your Personal Voice
The GX-100 comes with 100 preset memories to start playing right away. But it’s easy to edit them for your needs or build new ones from the ground up. Let your imagination run wild with 15 dedicated block types—including two amp blocks—and chain effects in series and parallel to create all types of sonic variations. And with 200 user memories, you’re able to store enough onboard sounds to cover nearly any song or style.

Touch and Go
Sound creation and on-the-gig editing are simpler than ever with the GX-100. The vivid color touch display offers intuitive control of patch and effects selection, parameter tweaks, signal chain adjustments, and much more. The display works in harmony with the four knobs and page buttons on the panel, providing a frustration-free experience that keeps your attention focused on the music.

Custom Command
The GX-100 offers deep real-time control with eight custom footswitches and an expression pedal with toe switch. They come configured for patch/bank selection and patch-specific control, but you can freely reassign them to meet your unique needs. Switching into Manual mode provides direct stompbox-like control, and you can go even further with external control via footswitches, an expression pedal, or MIDI. There’s also a jack to remotely switch channels on your amp with memory selection or an assigned footswitch.

Your Partner in Tone
In addition to stage use, the GX-100 excels as a USB audio interface for recording and performing with a computer. You can record directly into music production software, re-amp tracks, and monitor the overall sound through the GX-100’s outputs. The headphones jack lets you practice anytime and anywhere, while the onboard looper is perfect for jamming, developing sounds and ideas, and extending your creative range while performing.

Go Deeper with BOSS Tone Studio
Using BOSS Tone Studio for macOS and Windows, you’re able to tweak every GX-100 parameter, save sounds, and organize Live Sets for different gigs from your computer. And with the optional Bluetooth® Audio MIDI Dual Adaptor, you can wirelessly adjust settings on the gig from the BOSS Tone Studio app on your mobile device and stream backing music from your device’s library.

Features

• Powerful, easy-to-use amp/effects processor for guitar and bass
• 24-bit AD/DA, 32-bit floating-point processing, and 48 kHz sampling rate
• Authentic tube amplifier tone and touch response with AIRD technology
• 23 amplifier types and over 150 BOSS effects
• Ultra-flexible amp/effect routing with 15 assignable blocks
• Wide selection of onboard speaker types and support for loading WAV speaker IRs
• Streamlined modern design with intuitive color touch display and rugged metal chassis
• Unlimited effects control with freely assignable onboard footswitches and expression pedal with toe switch
• Connect up to two footswitches or an expression pedal for expanded control
• Send/return loop for external pedals or four-cable method
• Control jack for remote channel switching on your amplifier
• MIDI I/O jacks and multi-channel computer recording via USB
• Edit sounds from your computer with BOSS Tone Studio for macOS and Windows
• Optional Bluetooth® Audio MIDI Dual Adaptor allows you to edit sounds and stream audio from an iOS or Android mobile device

Specs

Sampling Frequency:  48 kHz

AD Conversion:  24 bits + AF method
AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.

DA Conversion:  24 bits

Processing:  32-bit floating point

Effects:  154 Types

Maximum Number of Effects15+3 (DIVIDER/MIXER, SEND/RETURN, PHRASE LOOP)
*depending on the circumstances

Memories:  200 (User) + 100 (Preset)Phrase Loop38 sec. (MONO)
19 sec. (STEREO)Tuner Internal Detection+/-0.1 cent

Nominal Input Level

INPUT: -10 dBu
RETURN: -10 dBu

Maximum Input Level

INPUT: +18 dBu
RETURN1: +8 dBu

Input Impedance

INPUT: 1 M ohm
RETURN: 1 M ohm

Nominal Output Level

OUTPUT (L/MONO, R): -10 dBu
PHONES: -10 dBu
SEND: -10 dBu

Output Impedance

OUTPUT (L/MONO, R): 1 k ohm
PHONES: 44 ohms
SEND: 1 k ohm

Recommended Load Impedance

OUTPUT (L/MONO, R): 10 k ohms or greater
PHONES: 44 ohms or greater
SEND: 10 k ohms or greater

Controls

BANK DOWN switch, BANK UP switch, CTL1 switch, CTL2/TUNER switch, 1--4 switches, POWER switch, EXP1 switch, GND LIFT switch

EFFECTS button, CTL/EXP button, MENU button, EXIT button, WRITE button, IN/OUT SETTINGS button, PAGE button,1--4 knobs

SELECT knob, OUTPUT LEVEL knob, EXP1 pedal

Display

Color:  Graphic LCD (480 x 272 dots) Touch screen

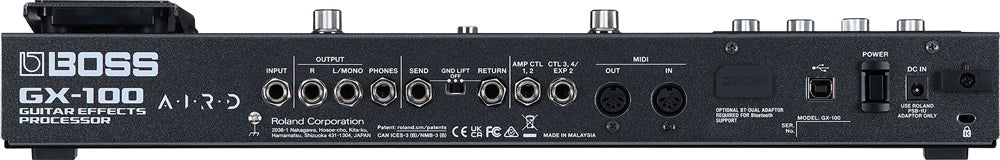

Connectors

INPUT jack, OUTPUT (L/MONO, R) jacks, SEND jack, RETURN jack: 1/4-inch phone type
PHONES jack: Stereo 1/4-inch phone type
CTL3, 4/EXP2 jack, AMP CTL1, 2 jack: 1/4-inch TRS phone type
MIDI (IN, OUT) connectors
USB COMPUTER port: USB B type
Bluetooth ADAPTOR connector: Dedicated connector
DC IN jack

Power Supply:  AC adaptor

Current Draw:  1.2 A

Accessories

AC adaptor (PSB-1U + AC Cord Set)
Owner's manual
Leaflet "USING THE UNIT SAFELY"

Options (sold separately)

Footswitch: FS-5U, FS-5L, FS-6, FS-7
Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5
Bluetooth(R) Audio MIDI Dual Adaptor: BT-DUAL
Carry Bag: CB-ME80

SIZE AND WEIGHT

Width:  460 mm=18-1/8 inches

Depth:  193 mm=7-5/8 inches

Height:  73 mm=2-7/8 inches

Maximum height:  94 mm=3-3/4 inches

Weight:  3.5 kg=7 lbs 12 oz

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
