(Demo Unit) BOSS Nextone Stage Combo Amplifier

BOSS Nextone Stage Combo Amplifier

FOUR POWER STAGES, UNLIMITED EXPRESSION

Combining classic tube sound and feel with next-generation tonal diversity, the BOSS Nextone series presents an exciting new concept in professional guitar amplification. Distinctive channel voicings deliver a wide range of inspiring tones, while four selectable Class AB analog power amp types provide instant access to the unique characteristics of 6V6, 6L6, EL84, and EL34 output tube sections. Backed by the Boss advanced Tube Logic approach, each power amp type re-voices the entire circuit from input to output, putting the complete sonic experience of these signature power stages in one amp for the very first time.

Description

Want to dive deeper with even more sound customization? Just connect to the Nextone Editor and become a virtual tech, fine-tuning bias, sag, and other internal settings to perfectly match your individual style and touch. Nextone also includes convenient modern features for stage playing, such as built-in effects, a line out for mic-free direct tone, and a power control for expressive cranked-amp sound at manageable volumes. And thanks to Tube Logic, you get to enjoy all the great sound and response of your favorite tube designs without the backbreaking weight and ongoing maintenance hassles.

Features

• Professional performance amplifier with authentic Tube Logic tone
• Four analog Class AB power amp circuits, selectable from the panel: 6V6, 6L6, EL84, and EL34
• Streamlined combo design with 40 watts of power and custom 12-inch speaker
• Clean and lead channels, with standard and custom mode options
• Dynamically responsive power control for cranked-up sound and response at reduced volumes
• Nextone Editor (Mac/Windows) for customizing internal amp parameters, including tone stack type, EQ, sag, bias, effects, system settings, and much more
• Boost and Tone switches for adding crunch and sparkle
• Built-in delay, tremolo, and reverb effects, plus loop for patching in external effects
• External speaker jacks: one 8 ohm and two 16 ohm
• Line, USB, and phones/recording outputs, with three Air Feel mic’d cab settings selectable from the Nextone Editor
• Support for direct recording and re-amping via USB

Specs

Rated Power Output:  40 W

Nominal Input Level: INPUT: -10 dBu (1 M ohm)
RETURN IN: -10 dBu (100 k ohm)

Speaker:  30 cm (12 inches) x 1

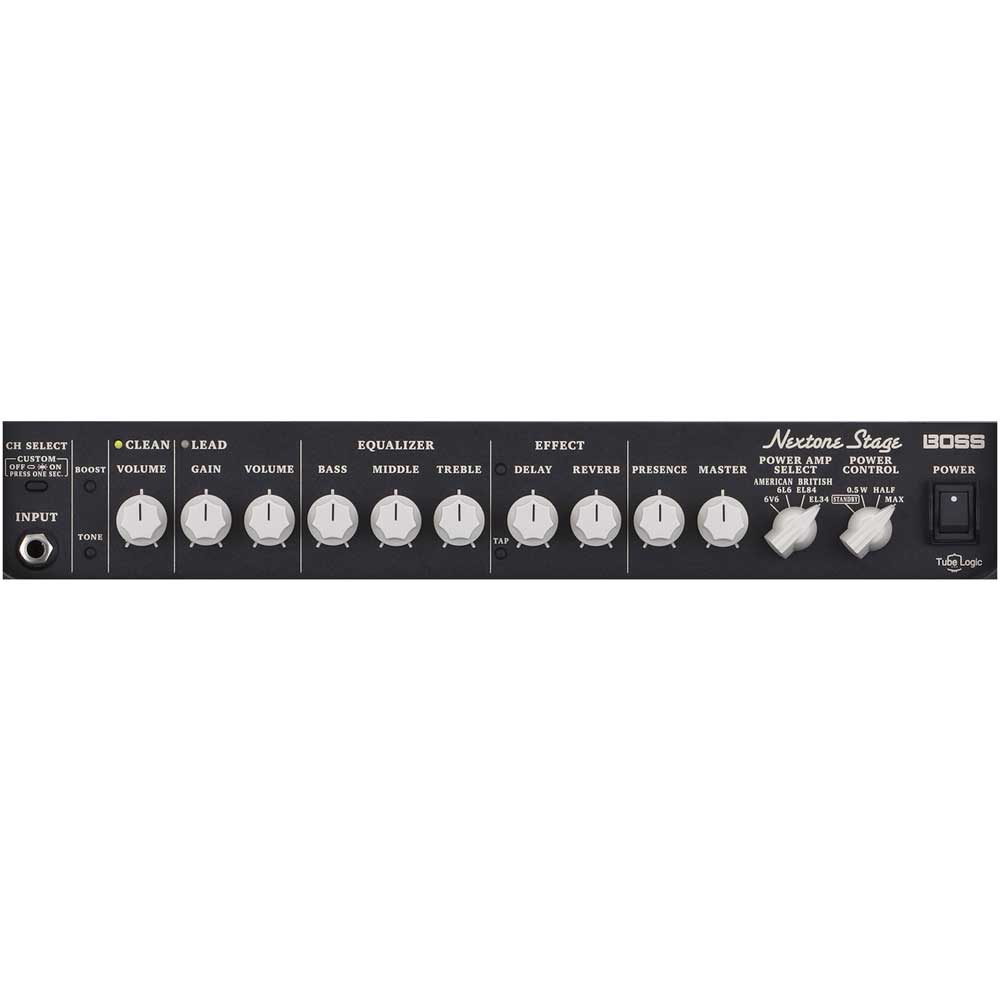

Controls

CH SELECT button
BOOST button
TONE button

[CLEAN]
VOLUME knob

[LEAD]
GAIN Knob
VOLUME knob

[EQUALIZER]
BASS knob
MIDDLE knob
TREBLE knob

[EFFECT]
DELAY button
TAP button
DELAY knob
REVERB knob

PRESENCE knob
MASTER knob
POWER AMP SELECT switch (6V6, 6L6, EL84, EL34)
POWER CONTROL switch (STANDBY, 0.5 W, HALF, MAX)
POWER switch

Indicators

CLEAN
LEAD
CUSTOM MODE
BOOST
TONE
DELAY
TAP

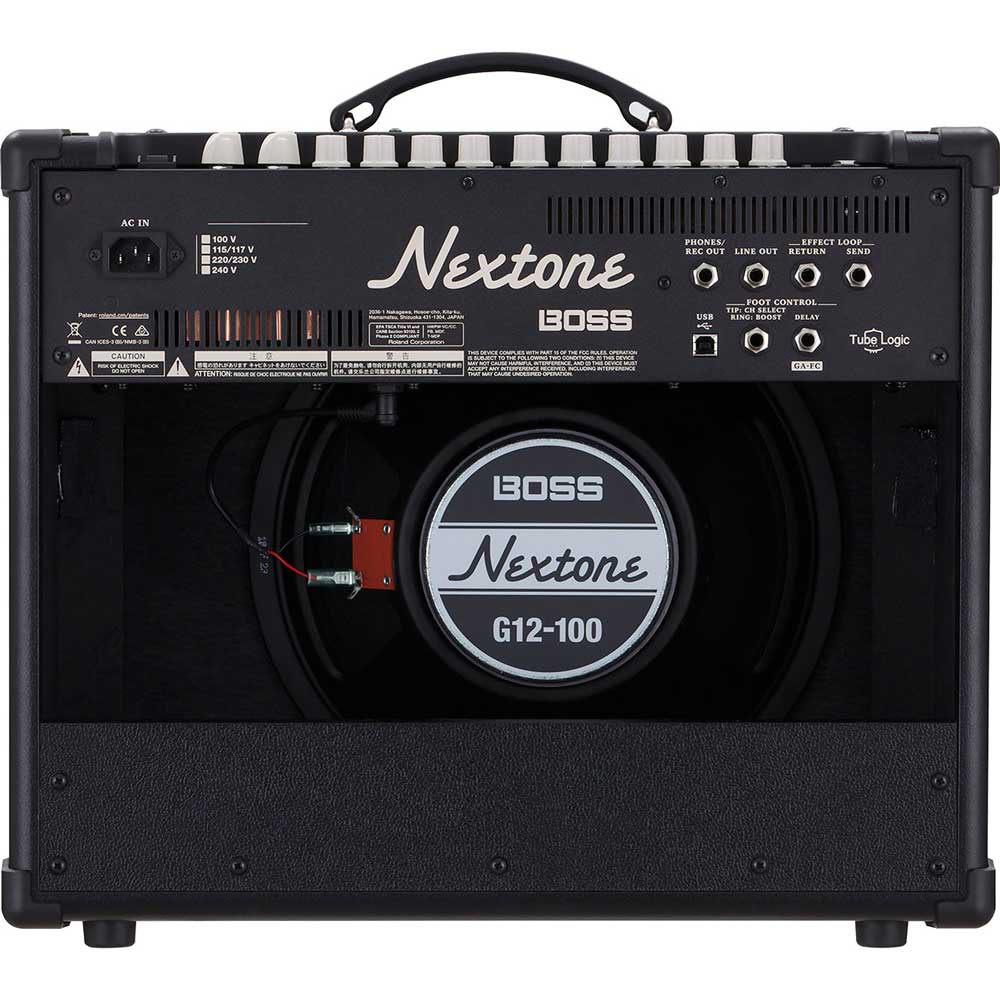

Connectors

INPUT jack: 1/4-inch phone type
REC OUT/PHONES jack: Stereo 1/4-inch phone type
SEND jack: 1/4-inch phone type
RETURN jack: 1/4-inch phone type
LINE OUT jack: 1/4-inch phone type

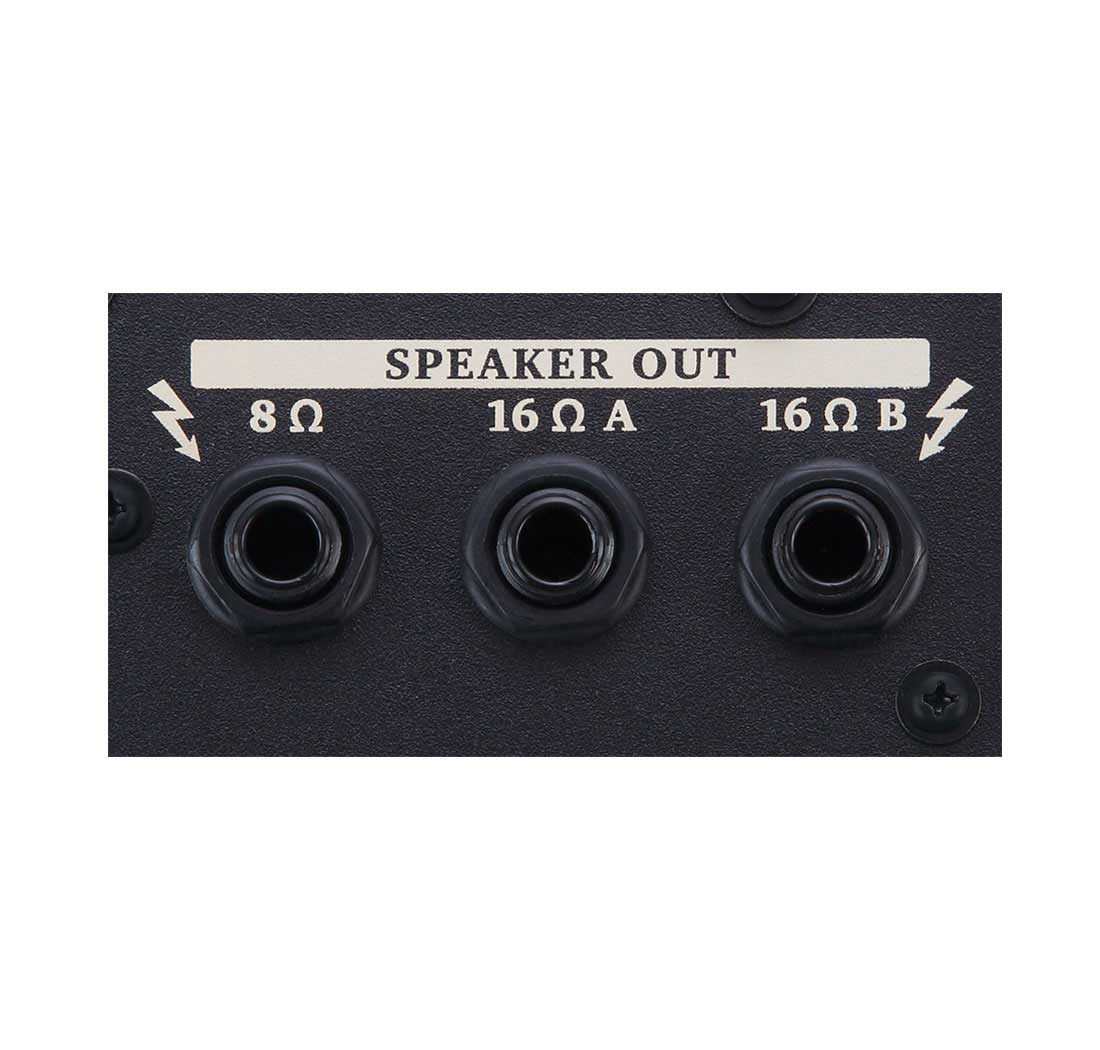

SPEAKER OUT 16 ohms A jack: 1/4-inch phone type
SPEAKER OUT 16 ohms B jack: 1/4-inch phone type
SPEAKER OUT 8 ohms jack: 1/4-inch phone type
CH SELECT/BOOST jack: 1/4-inch TRS phone type
DELAY/GA-FC jack: 1/4-inch TRS phone type
USB port: USB B type
AC IN jack

Power Consumption:  37 W

Accessories:  Owner' s manual
Power cord
GA-FC sticker

Options (sold separately)

Footswitch: BOSS FS-5L, BOSS FS-6, BOSS FS-7
Expression pedal: Roland EV-5, BOSS FV-500L, BOSS FV-500H
GA FOOT CONTROLLER (GA-FC)

SIZE AND WEIGHT

Width:  492 mm/19-3/8 inches
Depth:  248 mm/9-13/16 inches

Height:  427 mm/16-13/16 inches

Weight:  13.4 kg/29 lbs 9 oz

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
