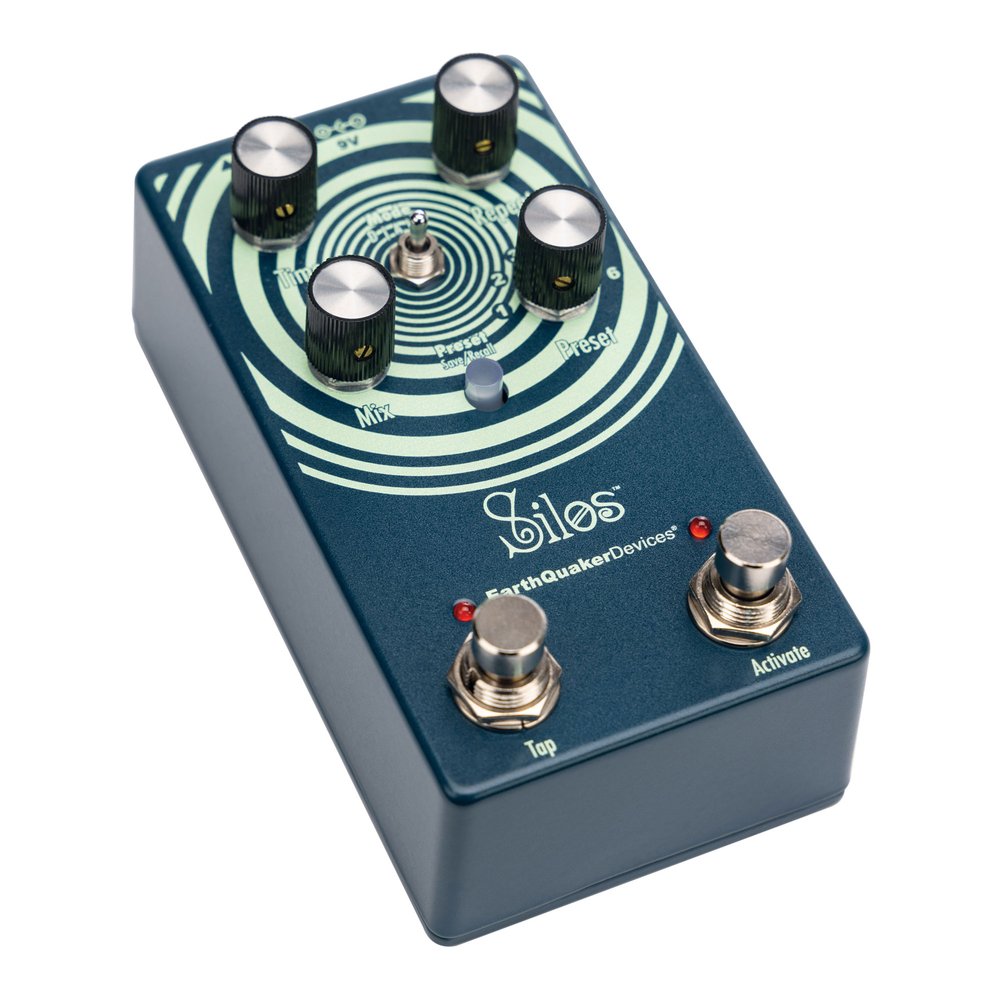

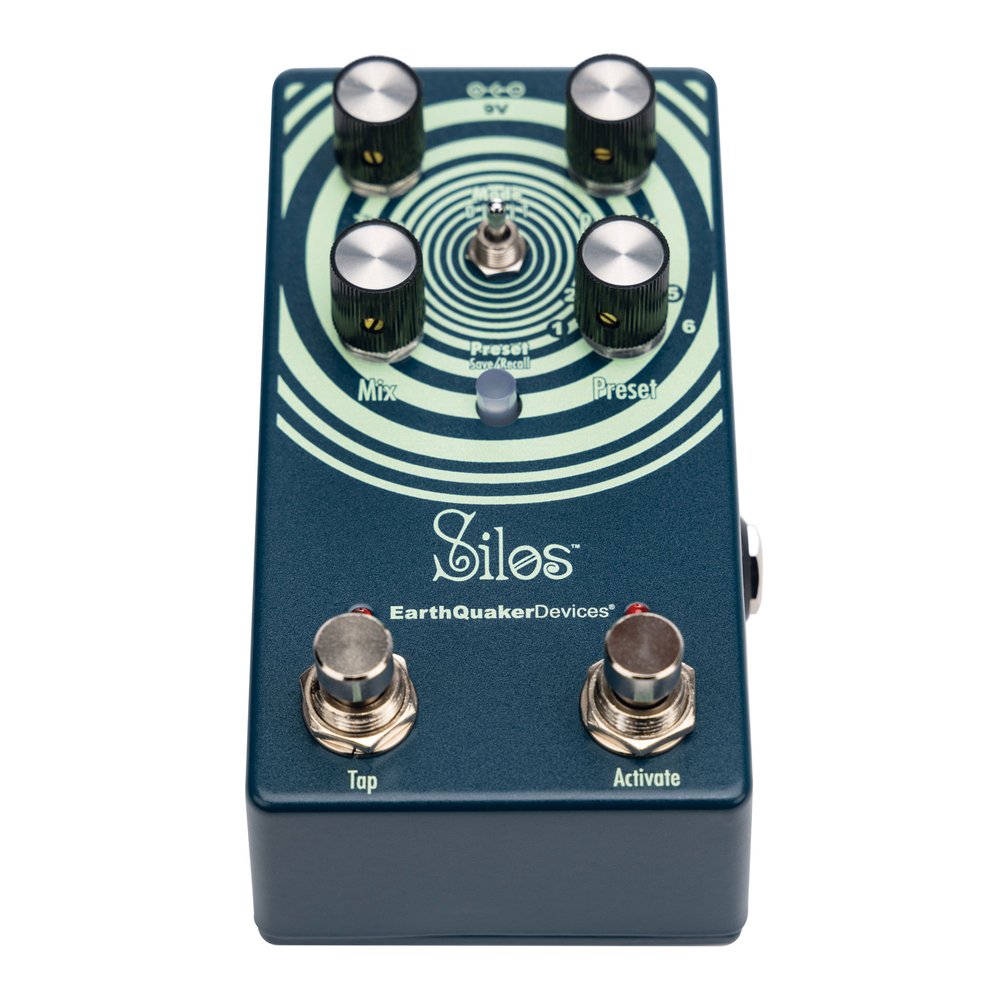

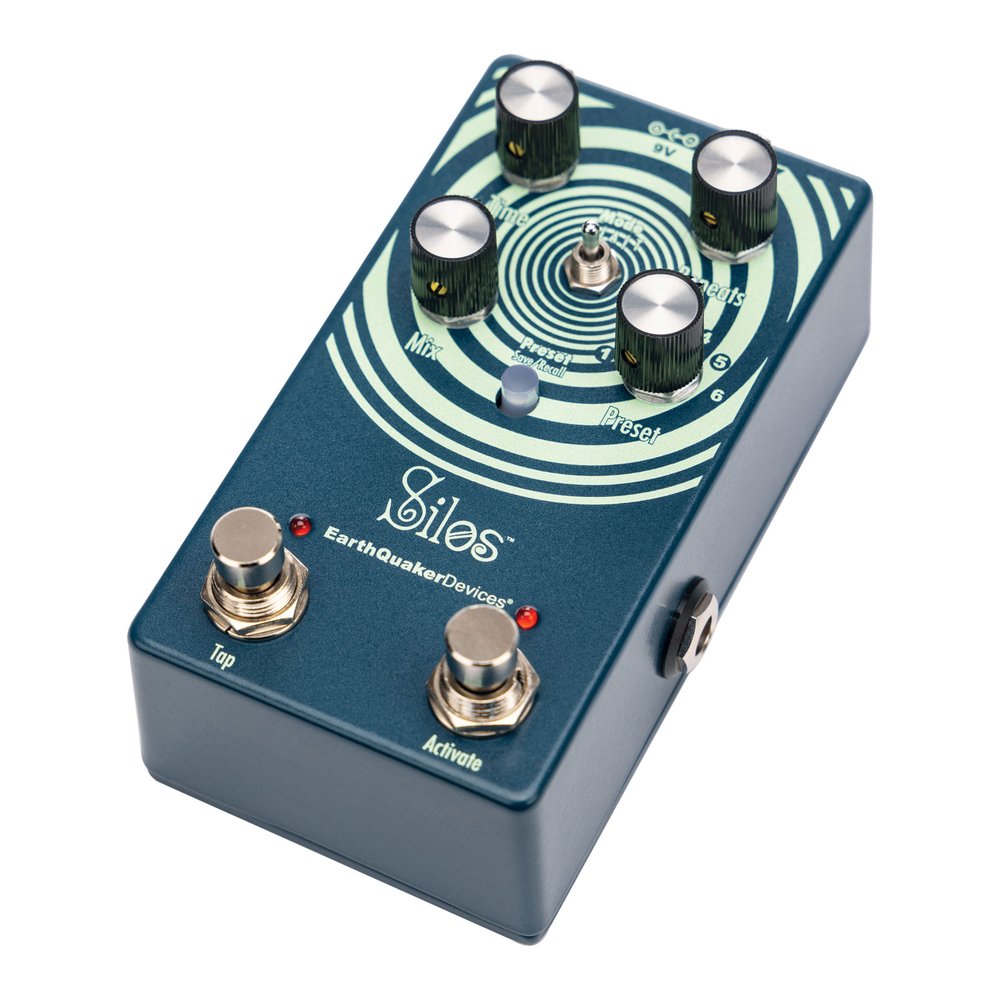

EarthQuaker Devices Silos Multi-Generational Time Reflection Device V1

EarthQuaker Devices Silos Multi-Generational Time Reflection Device V1

Unlike anything before it, the Silos merges together a digital, analog, and tape delay into one compact and powerful pedal. In addition to the tri-voice delay, it features tap tempo, user-assignable expression control, and the ability to save and recall six presets, making it endlessly customizable and easy to operate. It’s like having three classic pedals all rolled into one! Now you can save room on your pedalboard while never having to decide which single delay to use again.

3 Modes Of Impeccable Sounding Delay
Each of the three modes offers up to one second of delay time. From noon and back is 500 milliseconds to zero, which has its own character. From 500 milliseconds to one second of delay time, it’s an entirely different beast. Dial them in for shorter delay times where they really excel and add loads of atmosphere and vibes. Push them further for rhythmic delays that are perfect for strumming and adding extra ambiance for your riffs. Each of the three delay modes is uniquely different and offers its own unique character when selected.

Global Features

Pairs Perfectly With Distortion
Silos was meticulously designed to respond well to gain and overdrive saturation.

Presets
Silos has six available preset slots for you to save and recall your favorite settings. The settings for each of the three controls, the mode switch and the expression jack assignment can be saved and recalled in any of the slots.

Easily Switch Between Delay Modes
Silos has two operating modes which are extremely easy to switch between on the fly! In Live mode, the pedal will operate exactly where the controls are set and any changes will have no effect on the presets unless saved. In Preset mode, stored presets (including expression pedal mapping) are selected using the Preset switch, and the physical settings of the controls will be ignored.

User-Assignable Expression Control
Use any TRS expression pedal to take control over the Time, Repeats or Mix.

Specs

Dimensions

4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs

Current Draw

75 mA

Input Impedance

500 kΩ

Output Impedance

100 Ω

TRS expression pedal wiring

Tip: Wiper
Ring: +3.3V
Sleeve: Ground

Flexi-Switch Technology

This device features Flexi-Switch® Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

• For standard latching operation: tap the footswitch once to activate the effect and then tap again to bypass.

• For momentary operation: hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.

Silos is buffered bypass with tails. Power is required to pass signal.

Power

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
