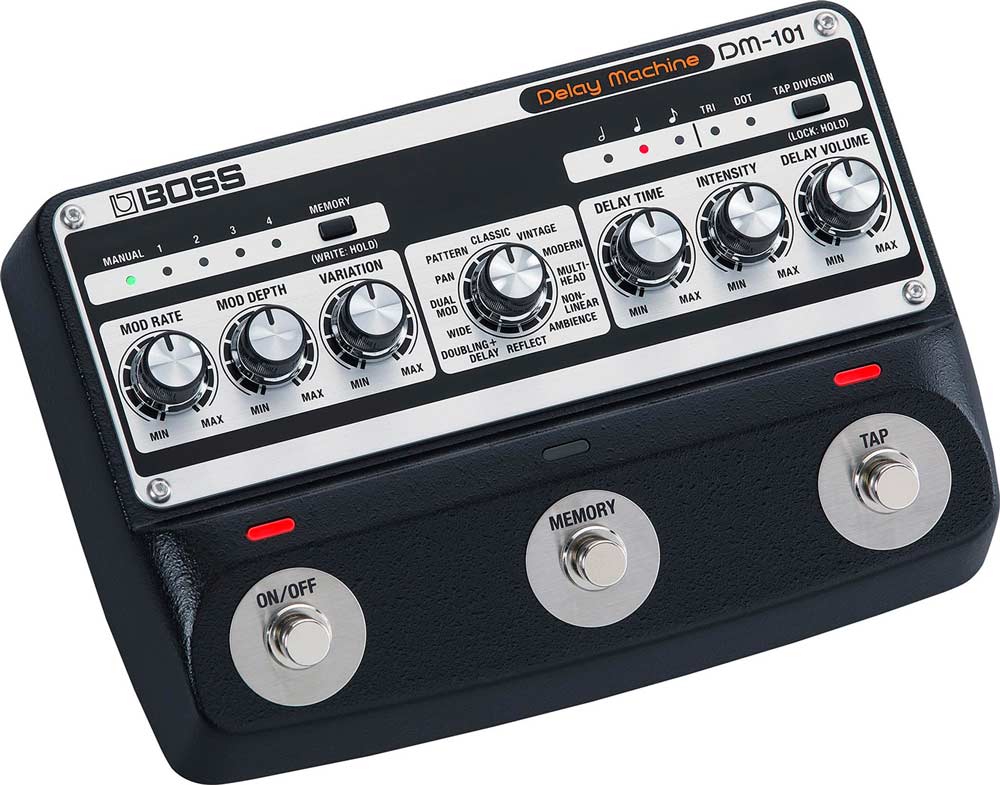

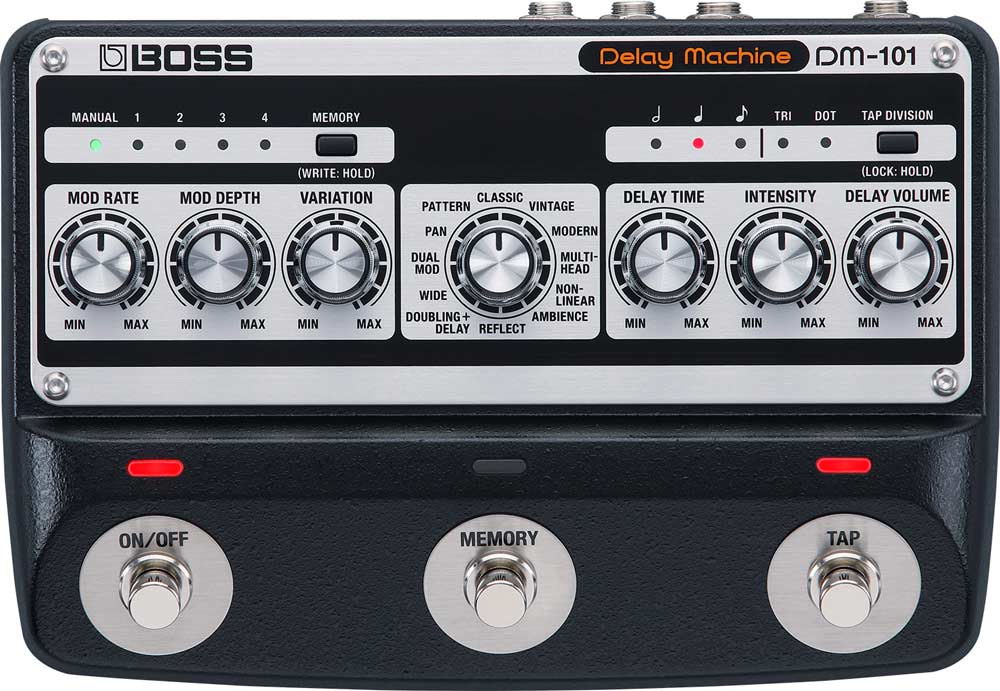

Boss DM-101 Delay Machine

Boss DM-101 Delay Machine

Meet the Ultimate Analog Delay
Classic sound meets modern power with the DM-101 Delay Machine, the ultimate analog delay. Driven by eight BBDs under smart CPU control, this inspiring pedal delivers 12 unique modes, stereo operation, and a wide array of tonal colors, all while maintaining 100 percent analog signal processing throughout. And with 127 user memories, tap tempo, carryover, MIDI, and more, the DM-101 brings you the features and versatility of an advanced digital pedal—but with the vibrant, characterful sound that’s only possible with authentic analog BBD circuitry.

FEATURES

• The ultimate analog delay pedal realized with advanced BOSS technology
• Fully analog BBD audio circuitry shaped by precision digital CPU control
• Warm, saturated, and highly musical tone
• Twelve modes deliver a wide range of mono and stereo delay textures, created using up to eight internal BBDs
• Stereo output with flexible signal routing options
• Adjustable modulation rate and depth with dedicated knobs
• Variation knob for controlling multiple parameters that are unique to each mode
• Selectable carryover for maintaining delay trails when the effect is bypassed
• MIDI I/O on mini TRS connectors
• Tap tempo function and tap division switch for creating rhythmic delays
• Four onboard memories plus the current panel settings
• 127 user memories accessible via MIDI program change
• Expandable control via external footswitches, an expression pedal, or MIDI
• Analog Delay for the 21st Century
• Analog delays based around BBD (bucket-brigade device) microchips emerged in the 1970s as a compact and cost-effective alternative to the standard tape delays of the era. Their warm, saturated, and highly musical sound established a distinctive style of delay that remains favored by many musicians and audio engineers. Leveraging modern CPU control, the DM-101 supercharges this classic effect with enhanced capabilities for today’s music makers.

SPECIFICATIONS

Memory:  127 + Manual

Nominal Input Level:  INPUT: -10 dBu

Input Impedance:  INPUT: 1 M ohm

Nominal Output Level:  OUTPUT A/MONO, OUTPUT B: -10 dBu

Output Impedance:  OUTPUT A/MONO, OUTPUT B: 1 k ohm

Recommended Load Impedance:  OUTPUT A/MONO, OUTPUT B: 10 k ohms or greater

Delay Mode

CLASSIC
VINTAGE
MODERN
MULTI-HEAD
NON-LINEAR
AMBIENCE
REFLECT [STEREO]
DOUBLING+DELAY [STEREO]
WIDE [STEREO]
DUAL MOD [STEREO]
PAN [STEREO]
PATTERN [STEREO]

Bypass:  Buffered bypass

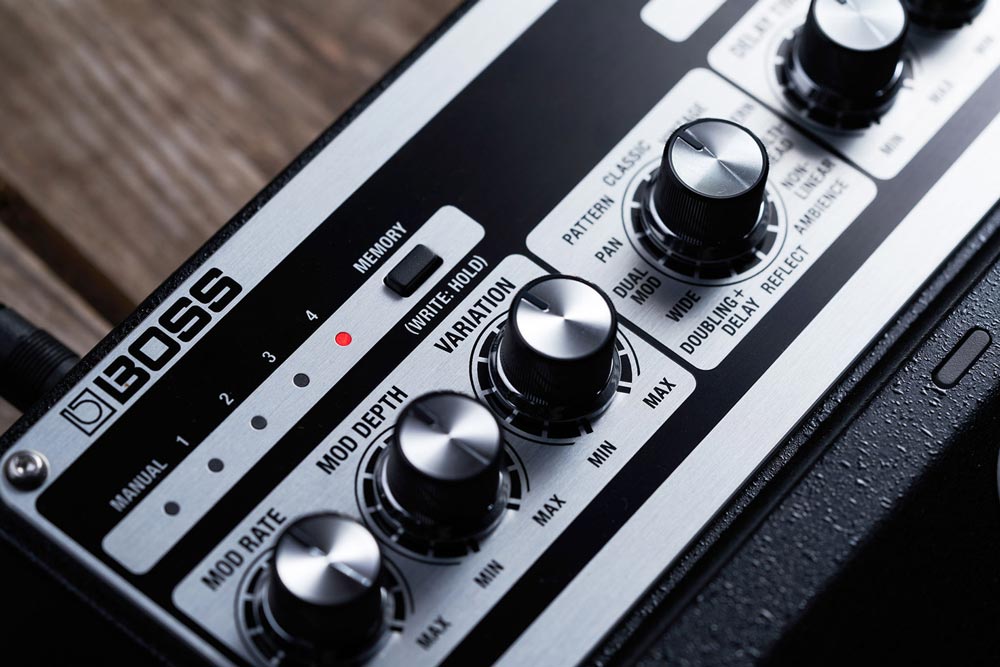

Controls

ON/OFF switch
MEMORY switch
TAP switch
MOD RATE knob
MOD DEPTH knob
VARIATION knob
MODE knob
DELAY TIME knob
INTENSITY knob
DELAY VOLUME knob
MEMORY button
TAP DIVISION button

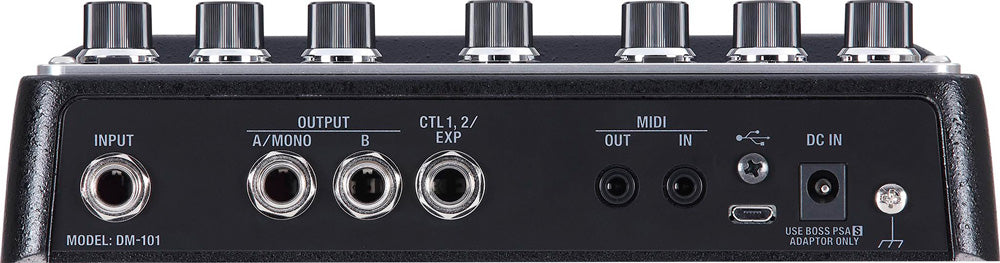

Connectors

INPUT jack, OUTPUT A/MONO jack, OUTPUT B jack: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only)

Power Supply:  AC adaptor

Current Draw:  260 mA

Accessories

AC adaptor
Owner’s Manual
Leaflet (“USING THE UNIT SAFELY“, “IMPORTANT NOTES“ and “Information“)
Rubber foot x 4Options (sold separately)Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

SIZE AND WEIGHT

Width:  192 mm/7-9/16 inches

Depth:  133 mm/5-15/64 inches

Height:  52 mm/2-3/64 inches

Height (including rubber foot):  53 mm/2-3/32 inches

Weight: 830 g/1 lb 14 oz

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
