Boss PX-1 Plugout FX Overdrive Pedal

Boss PX-1 Plugout FX Overdrive Pedal

Timeless Effects, Infinite Inspiration
The PX-1 Plugout FX is an innovative hardware platform that captures the timeless BOSS compact pedal experience in one versatile pedal. This convertible stomp holds multiple authentic effect recreations from the historic BOSS lineup, providing endless fuel for every creative journey. With the PX-1 in your setup, exploring the vast and influential world of BOSS compact pedals has never been easier.

Features

• Timeless BOSS compact pedals in an innovative hardware platform

• Instantly reconfigure the pedal to use one effect from an onboard library of up to 16 types

• Comes with 16 effects: OD-1, SP-1, PH-1, SG-1, CS-1, TW-1, SD-1, DS-1, CE-2, BF-2, PN-2, OC-2, PS-2, VB-2, DD-2, and DF-2

• Additional effects available over time with Model Pass purchases in the BOSS Effect Loader app

• Authentic tone and response, realized with powerful DSP dedicated to one effect at a time

• Stereo input and output

• Support for external control with footswitches or an expression pedal

• Tap tempo support and TRS MIDI input for MIDI clock sync

• Bluetooth® and USB-C® connectivity for loading effect models and more

• Runs on included AC adaptor or USB bus power

• BOSS five-year warranty


A Universe of Musical Colors
Since 1977, BOSS compact pedals have inspired generations of musicians around the world. Over 140 unique models have been produced, over 19 million units have been sold, and many have remained in non-stop production for decades. From vintage classics and go-to workhorses to rare and specialty effects, the PX-1 puts the diverse BOSS compact pedal range at your command.

Authentic Recreations
Backed by newly developed BOSS algorithms, each effect in the PX-1 delivers the authentic sound and response of the pedal it’s based on. Every detail is modeled with stunning accuracy, thanks to a powerful DSP engine dedicated to recreating the sound of a single effect at a time. Dial in tones fast with the familiar knob interface you’re used to with BOSS compacts, supported by an onboard display for current parameters and internal settings.

Modern Flexibility
The PX-1 supports external control with one or two footswitches or an expression pedal. Use the Swap function to switch between two effects. Or assign nearly any parameter for real-time expressive control while performing. Stereo I/O provides flexible connectivity and enhanced sound for models that support stereo operation, while tap tempo and MIDI clock sync help you get the most out of time-based effects.

Core Effects
The PX-1’s permanent library features eight famous BOSS pedals, including the three models from the 1977 debut and iconic drive pedals like the DS-1 and SD-1. Every model has a “1” designation, indicating that it’s the first of its type within the BOSS timeline.

Specifications

Sampling Frequency:  48 kHz

AD Conversion:  24 bits + AF method
AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.

DA Conversion:  32 bits

Nominal Input Level:  INPUT A (MONO), INPUT B: -20 dBu

Maximum Input Level:  INPUT A (MONO), INPUT B: +7 dBu

Input Impedance:  INPUT A (MONO), INPUT B: 1 MΩ

Nominal Output Level:  OUTPUT A (MONO), OUTPUT B: -20 dBu

Maximum Output Level:  OUTPUT A (MONO), OUTPUT B: +7 dBu

Output Impedance:  OUTPUT A (MONO), OUTPUT B: 1 kΩ

Recommended Load Impedance:  OUTPUT A (MONO), OUTPUT B: 10 kΩ or greater

Bypass:  Buffered bypass

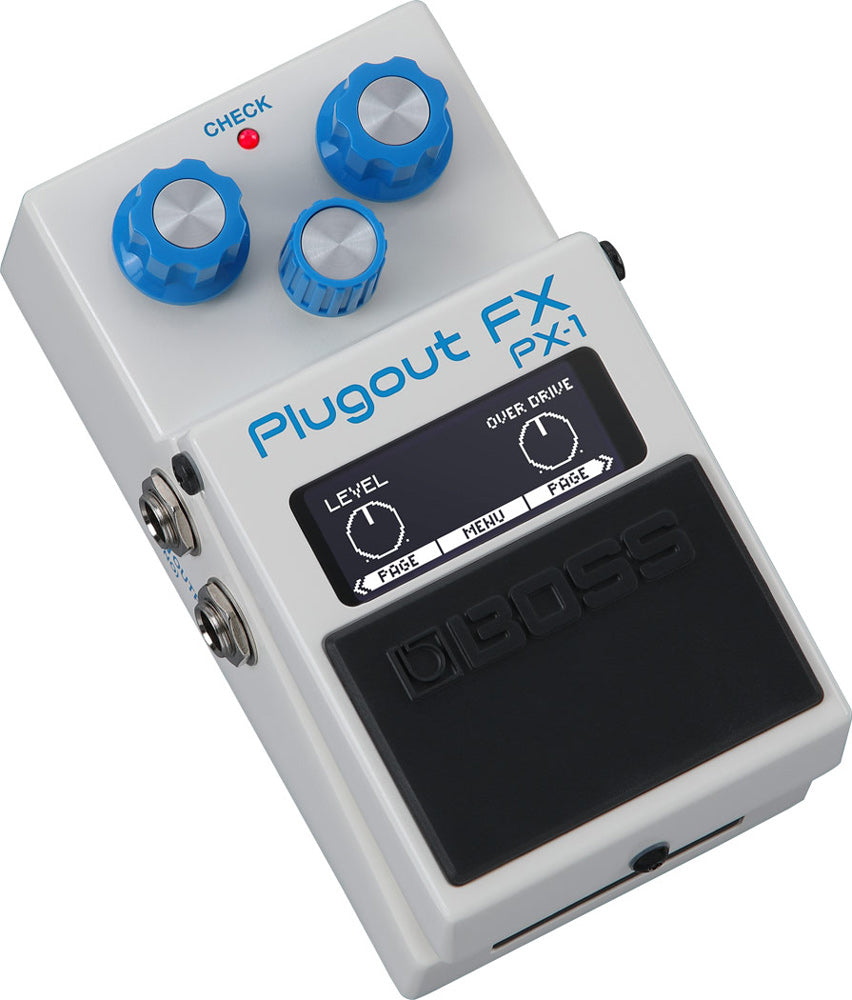

Controls

LEFT knob
CENTER knob
RIGHT knob
Pedal switch

Indicator:  CHECK indicator

Display:  Graphic LCD 128 x 48 dots

Connectors

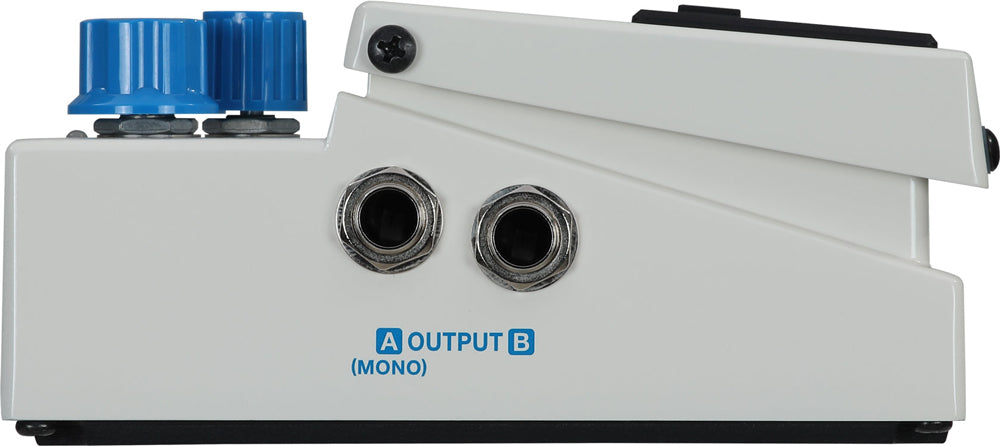

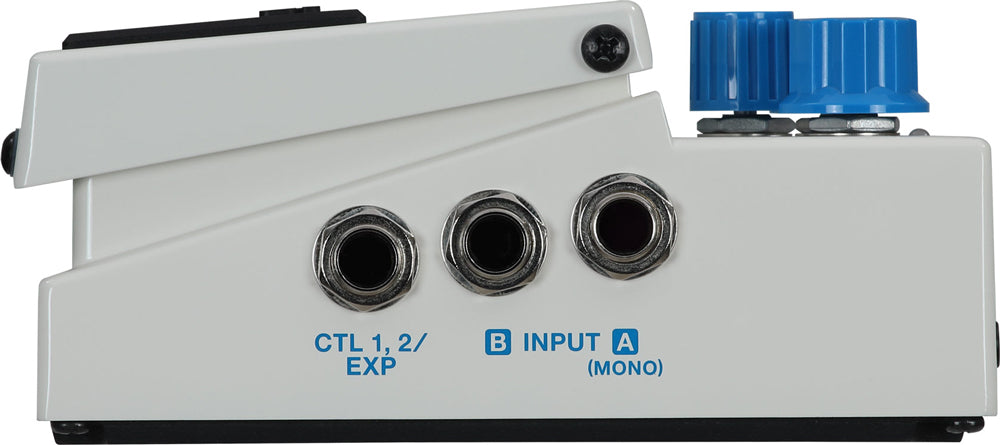

INPUT A (MONO) jack, INPUT B jack, OUTPUT A (MONO) jack, OUTPUT B jack: 1/4-inch phone type
CTL1,2/EXP jack: 1/4-inch TRS phone type

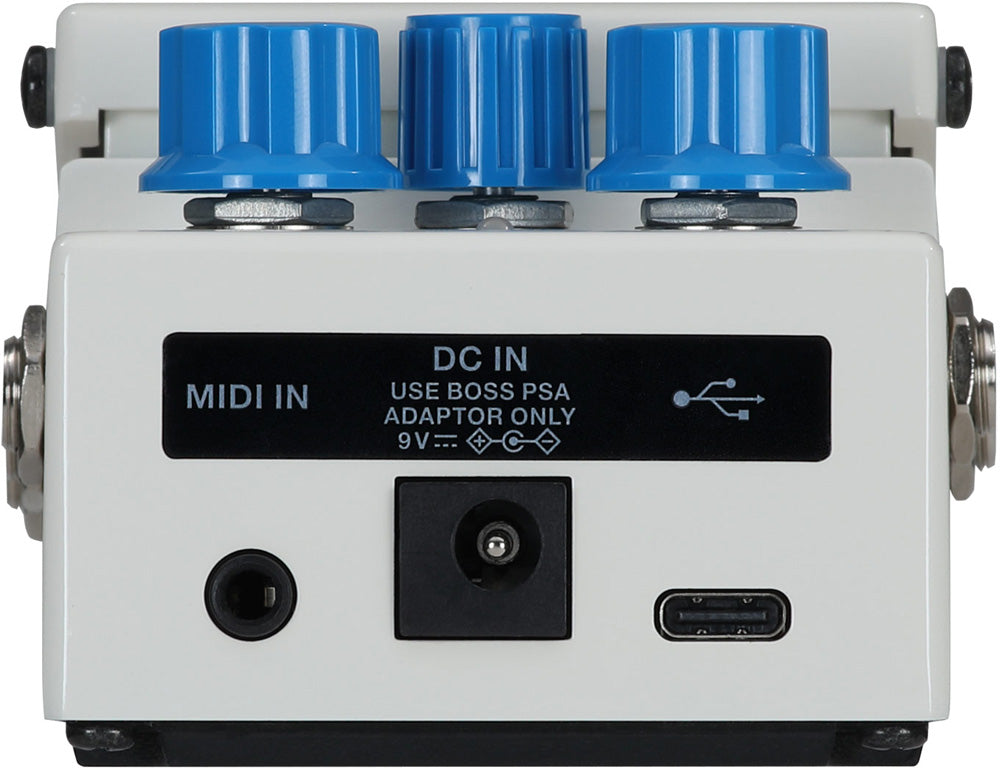

DC IN jack
MIDI IN jack: Stereo miniature phone type
USB COMPUTER port: USB Type-C®

Bluetooth:  Profile Support: GATT (MIDI over Bluetooth Low Energy)

Power Supply:  AC adaptor. Supplied from the USB port

Current Draw:  260 mA (AC adaptor), 420 mA (USB)

Accessories

AC adaptor
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Roland Cloud Activation Card

Options (sold separately)

Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

Size and Weight

Width:  73 mm/2-7/8 inches

Depth:  125 mm/4-15/16 inches

Height:  56 mm/2-1/4 inches

Weight (excluding AC adaptor):  400 g/15 oz

• 0 dBu = 0.775 Vrms
• *The specifications are subject to change without notice.
