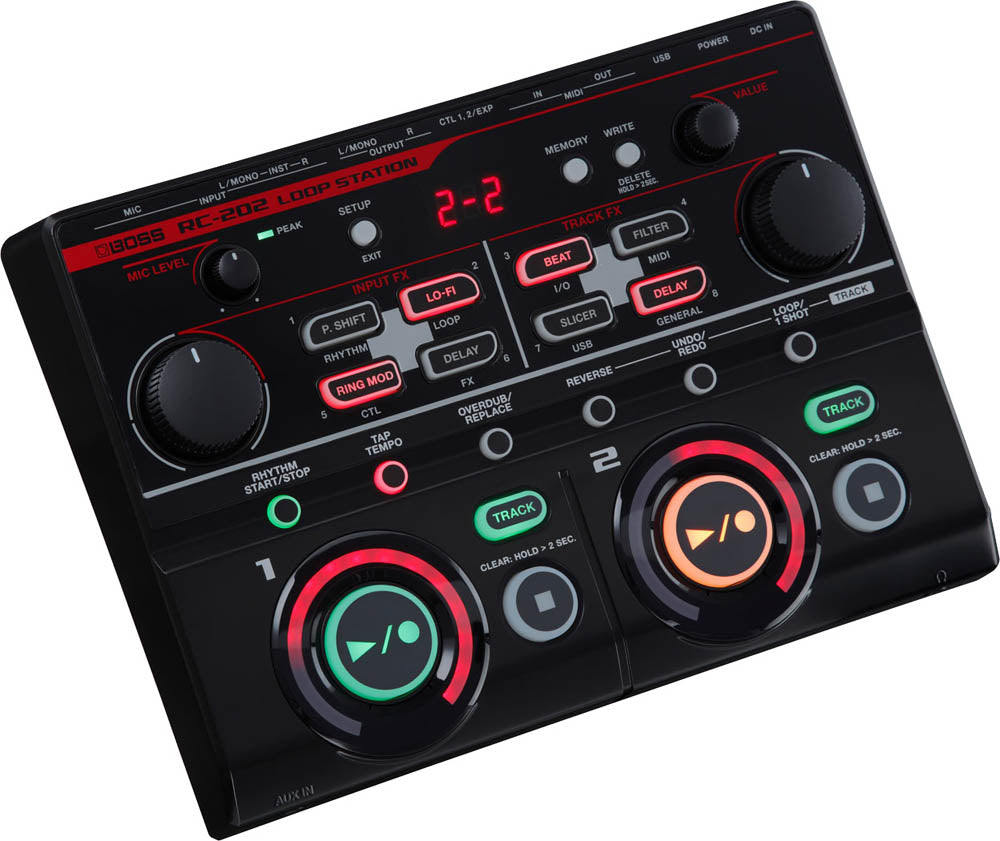

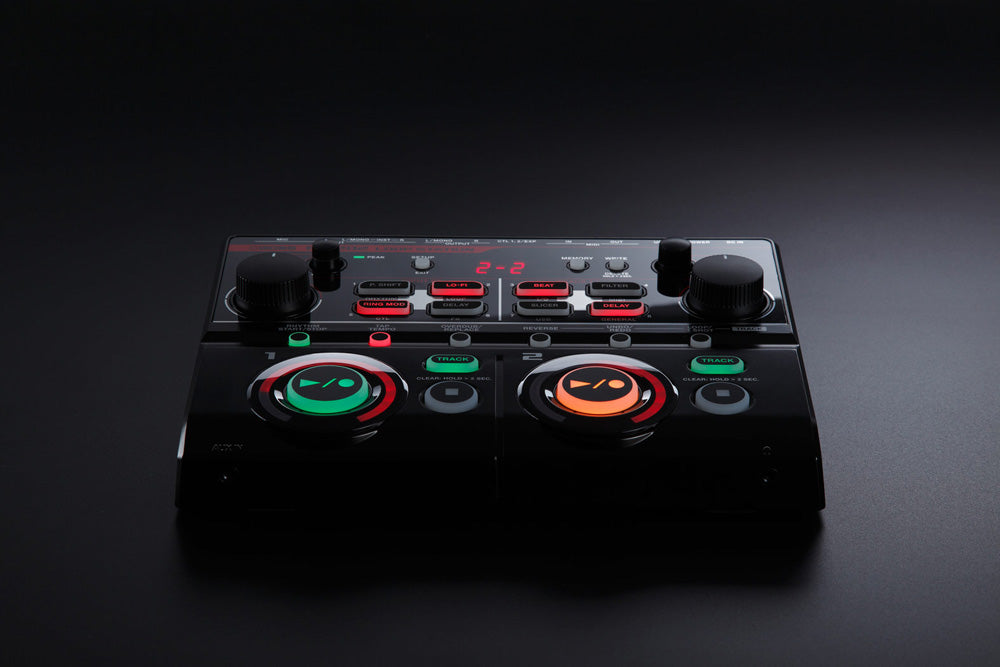

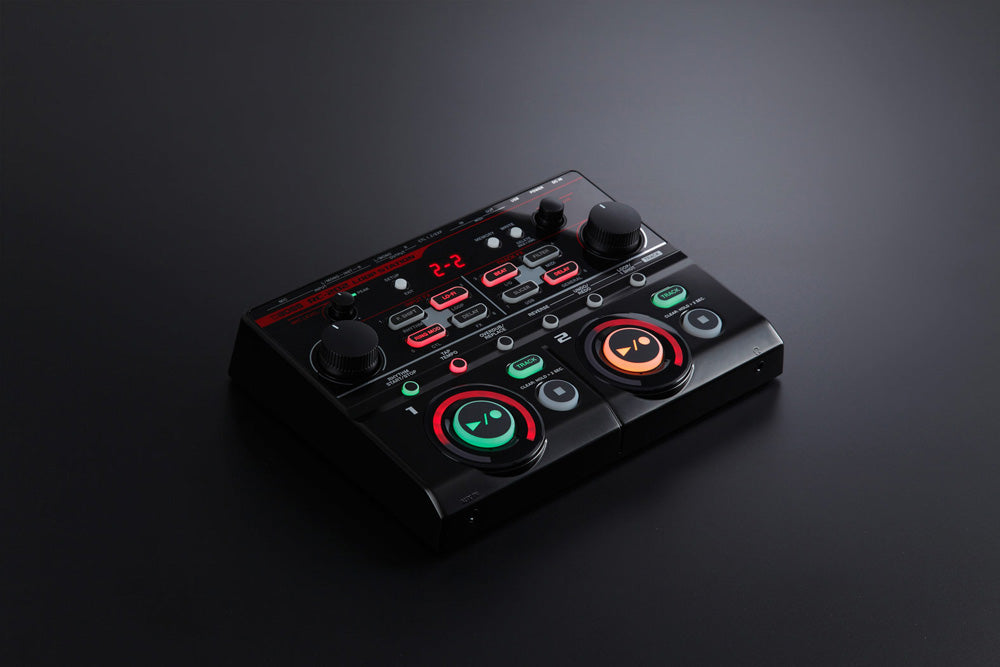

Boss RC-202 Loop Station

Boss RC-202 Loop Station

FINGERTIP LOOPING FOR PROGRESSIVE MUSIC CREATORS

Perfect for club performers, electronic musicians, and beatboxers, the RC-202 packs powerful BOSS looping and multi-effects in an amazingly compact tabletop unit. Based on the popular RC-505 Loop Station, the two-track RC-202 offers the distinctive look and fingertip interface style of its big brother, plus a host of new features. Four Input FX and four Track FX are available at once, and loops can be saved to memories in real time for seamless creative expression while performing. Expanded foot control and MIDI capabilities are also included, ideal for looping musicians who have their hands occupied with guitar, keyboards, and other instruments.

Description

Features

• Advanced BOSS technology in a compact tabletop looper that can be operated with your hands
• Two simultaneous stereo phrase tracks with dedicated controls and loop status indicators
• Four Input FX and four Track FX simultaneously available for processing loops with DJ and sampler-style effects
• 64 phrase memories (8 memories x 8 banks), each containing two phrase tracks, custom effects/playback settings, and more
• Expanded external control via optional footswitches or expression pedal and MIDI
• XLR mic input with phantom power, mono/stereo instrument inputs, and stereo aux input
• 17 onboard rhythm patterns, including odd-measure beats
• USB for phrase import/export and DAW integration with computers

Specs

Nominal Input Level

INPUT MIC (variable): -40 dBu (typ.), -10 dBu (max)
INPUT INST: -10 dBu
AUX IN: -20 dBu

Input Impedance

INPUT MIC: 4 k ohms
INPUT INST: 1 M ohm
AUX IN: 22 k ohms

Nominal Output Level"  OUTPUT: -10 dBu

Output Impedance:  OUTPUT: 1 k ohm

Recommended Load Impedance:  OUTPUT: 10 k ohms or greater

Recording/Playback

Maximum Recording Time: Approx. 3 hours (stereo)
Maximum Phrase Memory: 8 Memory x 8 Bank
Number of Tracks: 2
Data Format: WAV (44.1 kHz, 16-bit linear, stereo)

Effect Type(INPUT FX/TRACK FX)

LPF
BPF
HPF
PHASER
FLANGER
SYNTH
LO-FI
RING MODULATOR
GUITAR TO BASS
SLOW GEAR
TRANSPOSE
PITCH SHIFT
ROBOT
VOCAL DIST
VOCODER
NATURAL COMP
HARD COMP
NATURAL LIM
HARD LIM
PHONE VOX
EQ
LOW ISOLATOR
MID ISOLATOR
HIGH ISOLATOR
OCTAVE
AUTO PAN
MANUAL PAN
TREMOLO
SLICER
DELAY
PANNING DELAY
TAPE ECHO
GRANULAR DELAY
ROLL
CHORUS
REVERB
BEAT REPEAT *1
BEAT SHIFT *1
BEAT SCATTER *1
VINYL FLICK *1

*1 TRACK FX only

Effect Type (MASTER FX)

COMP
REVERB

Rhythm Type17

Display:  7 segments, 3 characters (LED)

USB

Mass Storage Class
Audio/MIDI

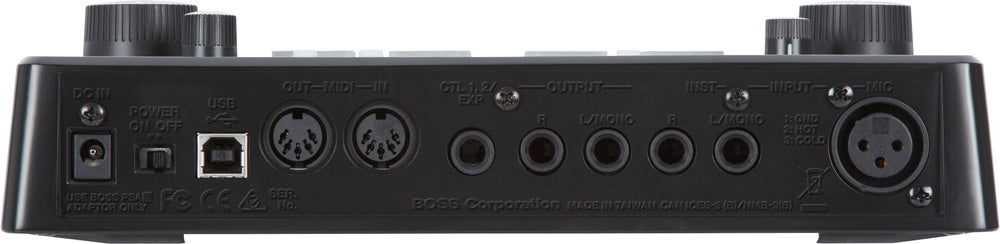

Connectors
INPUT MIC jack: XLR type (balanced, phantom power: DC 48 V, 10 mA Max) INPUT INST (L/MONO, R) jacks: 1/4-inch phone type
AUX IN jack: Stereo miniature phone type
Phones jack: Stereo miniature phone type
OUTPUT (L/MONO, R) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
USB port: USB B Type
MIDI (IN, OUT) connectors
DC IN jack

Power Supply:  AC adaptor

Current Draw:  400 mA

Accessories

AC adaptor
Owner's manual
Leaflet "USING THE UNIT SAFELY"

Options (sold separately)

Footswitch: FS-5U, FS-6, FS-7
Expression pedal: Roland EV-5, FV-500L, FV-500H

SIZE AND WEIGHT

• Width:  239 mm/9-7/16 inches
• Depth:  175 mm/6-15/16 inches
• Height:  55 mm/2-3/16 inches
• Weight (excluding AC Adaptor):  0.95 kg/2lbs. 2 oz.

* 0 dBu = 0.775 Vrms
