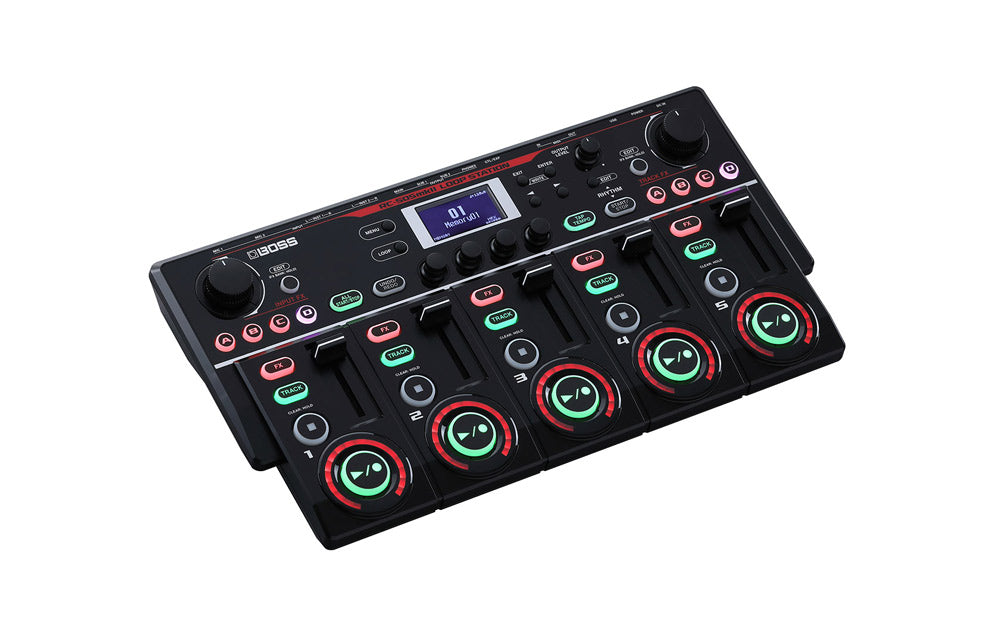

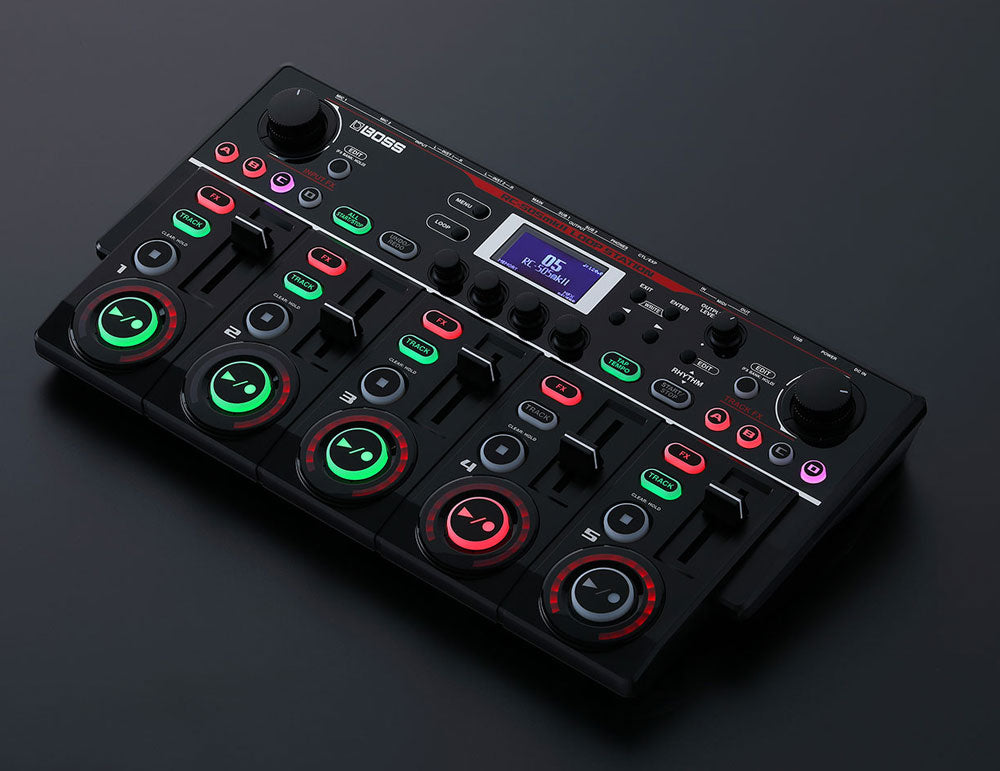

Boss RC505 MKII Loop Station

Boss RC505 MKII Loop Station

Looping Magic at Your Fingertips
Packed with inspiring tools for on-the-spot music creation, the RC-505mkII brings next-generation power and flexibility to the world’s most popular tabletop looper. Elevate your performances with five stereo tracks and four simultaneous Input FX and Track FX, and soar even further with customizable buttons, expanded I/O, increased mixing control, and other enhancements requested by long-time RC-505 users. Built for free-flowing expression on stage and in the studio, the RC-505mkII is a dream machine for beatboxers, vocalists, multi-instrumentalists, and other fearless looping artists.

Standard Features

• The industry-standard tabletop looper, updated and enhanced
• Class-leading sound quality with 32-bit AD/DA and 32-bit floating-point processing
• Five simultaneous stereo phrase tracks with dedicated controls and independent volume faders
• Input FX and Track FX sections, each with four simultaneous effects and four quick-access banks
• Customizable FX and Track buttons for each phrase track
• Massive onboard effects selection with 49 Input FX types and 53 Track FX types, including new Harmony, Electric FX, and many others
• New ultra-durable faders with longer throw for more precise adjustment
• Newly added Mark Back function provides enhanced undo/redo flexibility while performing
• Two XLR mic inputs with phantom power, two stereo line input pairs, and three stereo line output pairs
• 99 memories, each containing five phrase tracks, custom effects and playback settings, control assignments, and more
• Synchronize your loops with over 200 onboard rhythm patterns and 16 drum kits
• Deep MIDI control support
• Two external control jacks, each with support for up to two footswitches or an expression pedal
• USB for data backup, phrase import/export with BOSS Tone Studio, and pattern import with the RC Rhythm Converter

*For optimal performance, stay up to date with the current RC-505mkII system software and BOSS Tone Studio

Download “BOSS TONE STUDIO for RC” for Windows/macOS

SPECIFICATIONS

Sampling Frequency:  44.1 kHz

AD/DA Conversion:  32 bits

Processing:  32-bit floating point

Recording/Playback:

Number of Tracks: 5
Data Format: WAV (44.1 kHz, 32-bit float, stereo)
Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)

Rhythm Type:  200 types or greater

Rhythm Kit:  16 types

Effect

INPUT FX: 49 types
TRACK FX: 53 types
MASTER FX: 2 types

Memory:  99

Nominal Input Level:  MIC 1, 2

INPUT: -40 dBu
INST 1, 2 INPUT: -10 dBu

Maximum Input Level:  MIC 1, 2

INPUT: 0 dBu
IINST 1, 2 INPUT: +7 dBu/+20 dBu (selectable)

Input Impedance:  MIC 1, 2 INPUT: 3k ohms
INST 1, 2 INPUT: 1 M ohms/25 k ohms (selectable)

Nominal Output Level

MAIN OUTPUT: -10 dBu
SUB 1, 2 OUTPUT: -10 dBu

Maximum Output Level

MAIN OUTPUT: +7 dBu
SUB 1, 2 OUTPUT: +7 dBu

Output Impedance

MAIN OUTPUT: 1 k ohm
SUB 1, 2 OUTPUT: 1 k ohm

Recommended Load Impedance

MAIN OUTPUT: 10 k ohms or greater
SUB 1, 2 OUTPUT: 10 k ohms or greater

Controls

TRACK1--5 REC/PLAY button, TRACK1--5 STOP button, TRACK1--5 TRACK button, TRACK1--5 FX button, ALL START/STOP button, UNDO/REDO button, TAP TEMPO button, RHYTHM START/STOP button, RHYTHM EDIT button, INPUT FX A--D button, INPUT FX EDIT button, TRACK FX A--D button, TRACK FX EDIT button, MENU button, LOOP button, ENTER button, EXIT button, PAGE buttons, 1--4 knobs, OUTPUT LEVEL knob, TRACK1--5 LEVEL Faders

Display:  Graphic LCD (128 x 64 dots, backlit LCD)

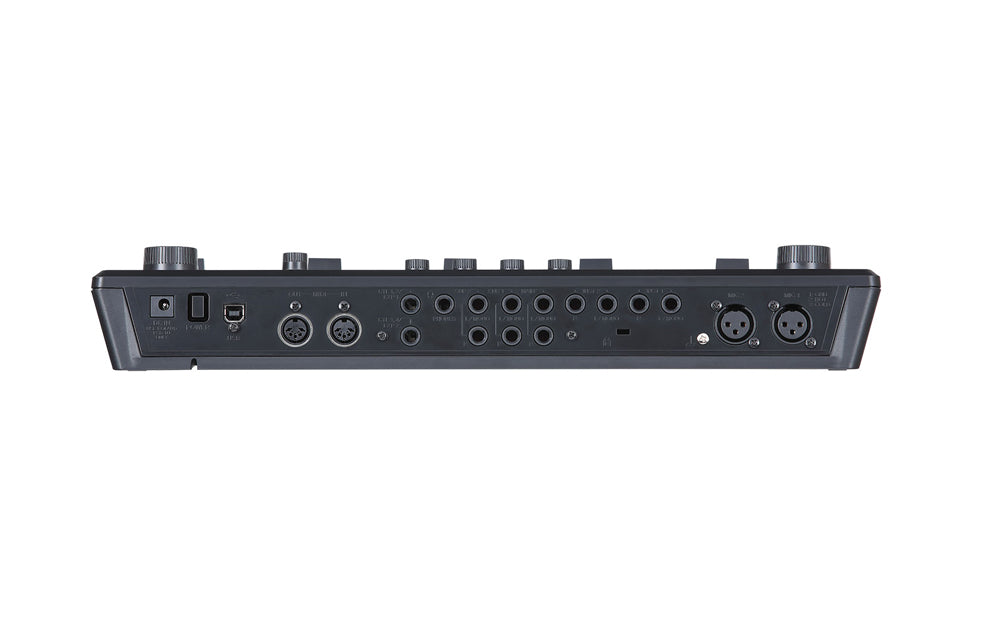

Connectors

MIC IN 1, 2 jack: XLR type (balanced, phantom power: DC 48 V, 10 mA Max
INST IN 1, 2 jacks, MAIN OUT jacks, SUB OUT 1, 2 jacks: 1/4-inch phone type
PHONES jack: Stereo 1/4-inch phone type
CTL1,2/EXP1 jack, CTL3,4/EXP2 jack: 1/4-inch TRS phone type
USB port: USB B type
MIDI (IN, OUT) connectors
DC IN jack

Power Supply:  AC adaptor

Current Draw:  1.0 A (with phantom power)
0.9 A (without phantom power)

Accessories

AC adaptor
Owner's Manual
Leaflet "USING THE UNIT SAFELY"

Options (sold separately)Footswitch: FS-5U
Dual Footswitch: FS-6, FS-7
Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5

SIZE AND WEIGHT

Width:  420 mm/16-9/16 inches

Depth:  234 mm/9-1/4 inches

Height:  67 mm/2-11/16 inches

Weight:  1.8 kg/4 lbs

* 0 dBu = 0.775 Vrms*The specifications are subject to change without notice.
