Mooer Radar Speaker Cabinet Simulator

Sale price
$ 125.99
Regular price
$ 147.99
You save
$ 22.00 (15%)

Product Description, Features, & Specs:

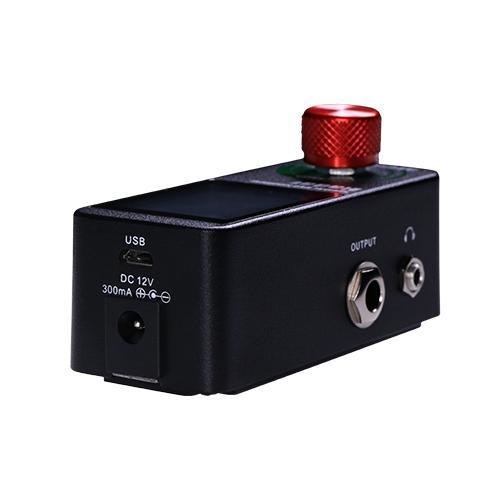

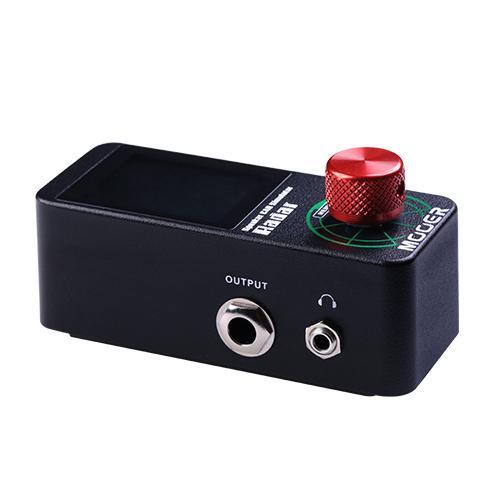

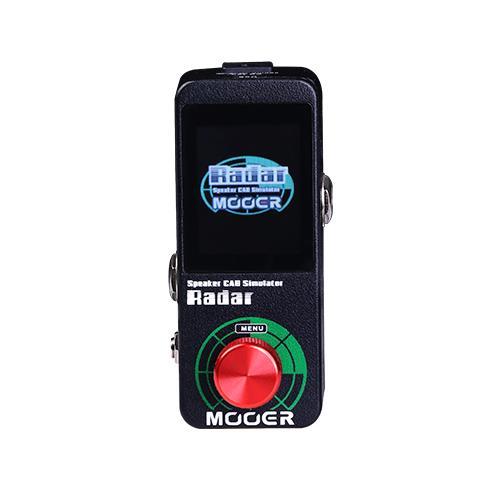

Mooer Radar Speaker Cabinet Simulator

The Mooer Radar Speaker CAB Simulator is a high-performance Impulse Response (IR) Digital Speaker Cabinet and Power Amp Simulator. With 30 Speaker Cabinet presets, 4 Power Amp presets and 11 different Microphone Sim Presets you can craft the ultimate combination of Speakers, Power Amps, and Microphones.



The MOOER RADAR is a full-featured professional speaker simulator which can be a permanent resident at the end of your pedalboard. Not only does it carry 30 cab models but it also has optional microphone and power amp simulation. Ideal for recording or hooked up to your favourite headphones for practice. The RADAR will transform your pedalboard into a complete guitar rig.

Main Features:

* 30 different speaker cab models
*11 mic models
* 4 power amp models
*Customizable EQ stage
* Capable of loading custom IRS
*Store and recall up to 36 user presets
* Connect to PC editor via USB
*Supports headphones and lineout

Mooer Studio Editor

Download the MOOER STUDIO software from our “Downloads & Firmware” page on the MOOERAUDIO website.

· After installation, connect your device to the computer using a USB cable
· Open the MOOER STUDIO software and select “Search Device”
· Select your device from the drop-down menu
· Select “Open Device”

Firmware Update

·Connect your RADAR to the computer using a USB cable
·Press and hold the “MENU” and power on the RADAR
This will boot RADAR into “Update Mode”
·Open the MOOER STUDIO software
·Press the “Search Device” button and then select “RADAR UPDATE” from the Device drop down menu
·Press the “Update” button and wait for the update to complete


  • Input: 1/4” mono audio jack.(Impedance: 100k Ω)
  • Output: 1/4” mono audio jack (Impedance: 470 Ω)
  • 1/8” stereo audio jack (Impedance: 10 Ω)
  • Sampling rate: 44.1K
  • Sampling accuracy: 24bit
  • Signal to noise ratio:100dB
  • Frequency Range:20Hz~20KHz
  • Power requirements: 12V DC Only use the power supply provided
  • Current Draw:300mA
  • Dimensions:93.5mm(D) x 42mm(W) x 52mm(H)
  • Weight:150g
