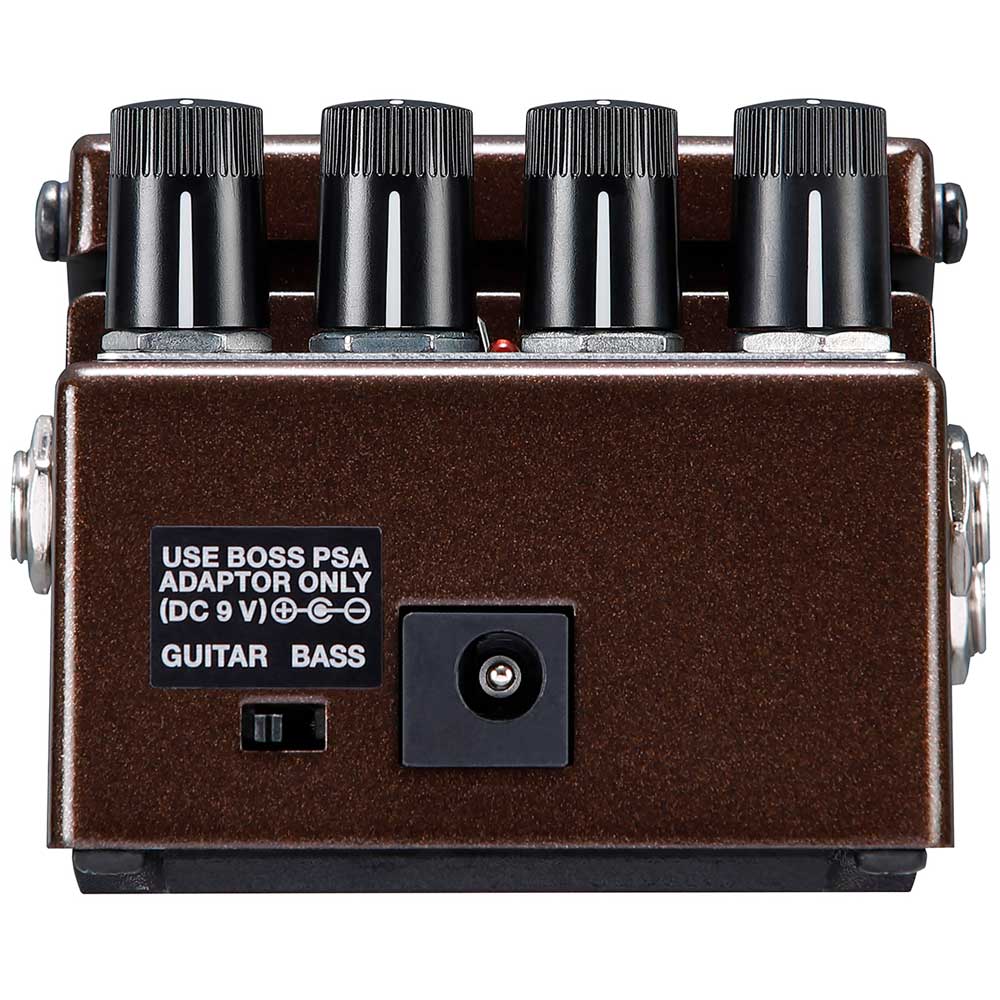

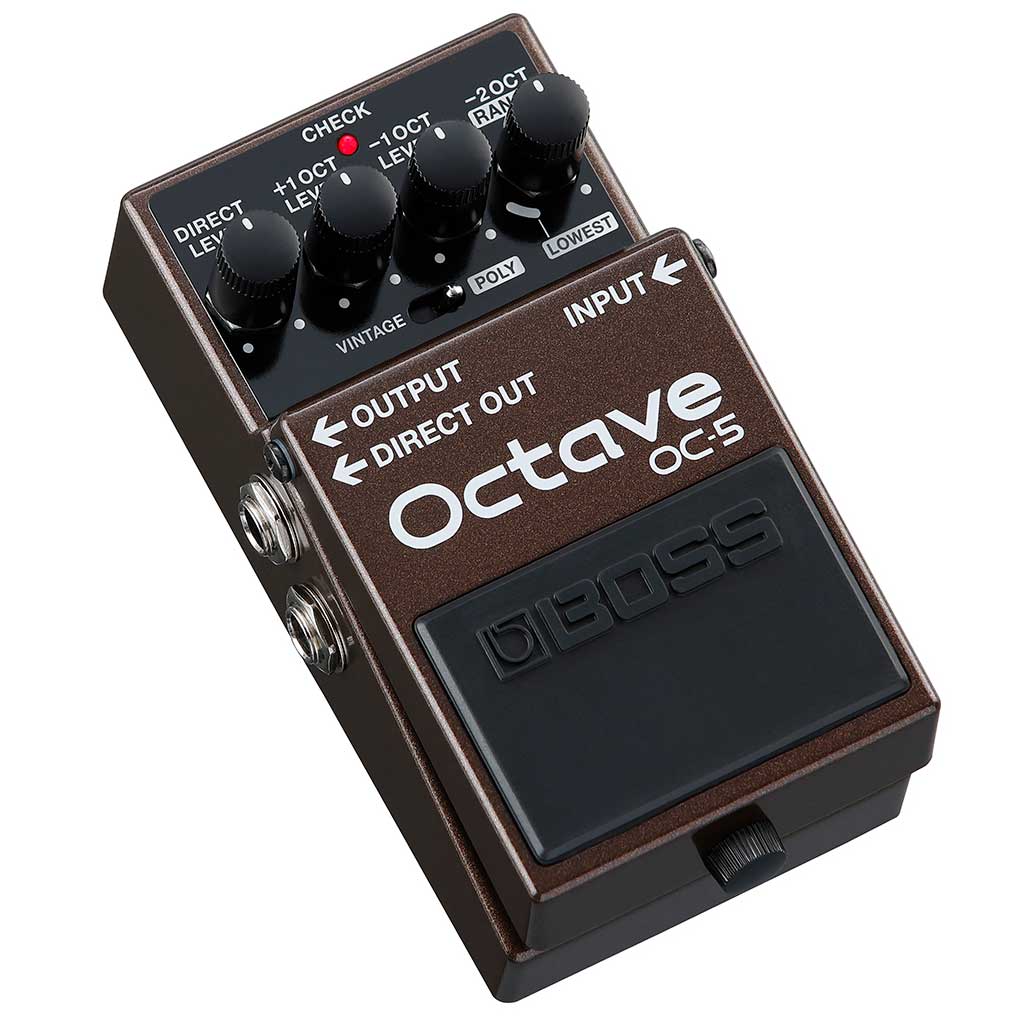

Boss OC-5 Octave Pedal

Price
$ 157.99

Stock Notification

Get notified when this product is available again


Product Description, Features, & Specs:

Boss OC-5 Octave Pedal

The New Standard in Octave Pedals

Fusing classic BOSS octave tones with the latest tracking technologies, the BOSS OC-5 sets a new standard in octave pedal performance. Vintage mode provides a spot-on recreation of the legendary mono OC-2 from 1982, while Poly mode offers numerous enhancements for extended-range playing. And with the addition of an octave-up feature, a span of three octaves is now available for creative exploration. From fat, low mono sounds to octave-shifted chords and more, the OC-5 delivers the widest range, finest sound quality, and best playability in any octave stomp to date.


Description

Introduced in 1982, the OC-2 was the world’s first modern octave pedal for guitar and bass. Still loved by players everywhere, the stomp’s warm-yet-present tone sits perfectly in a mix, and its characteristic voice can be heard in many famous songs. The OC-5’s Vintage mode brings you the OC-2’s iconic mono sound, coupled with improved response thanks to the new tracking engine. Dedicated level controls are provided for -1 and -2 octave effects and the direct sound, giving you quick access to an endless variety of sub-octave colors.



Features
  • The industry-standard octave pedal, updated with enhanced features
  • Newly developed tracking technology provides more accurate response and natural feel with no latency
  • Vintage mode faithfully reproduces the mono sound of the original OC-2
  • Poly mode for chord playing; Range knob sets the note range where the effect is applied
  • Lowest Range setting in Poly mode applies the octave effect to only the lowest note in a chord
  • New octave-up effect, available on its own or blended with octave-down effects
  • Mode switch optimizes the tracking engine for guitar or bass
  • Direct out for wet/dry setups
  • BOSS five-year warranty

Specs

Nominal Input Level:  -20 dBu

Input Impedance:  1 M ohm

Nominal Output Level: -20 dBu

Output Impedance:  1 k ohm

Recommended Load Impedance:  10 k ohms or greater

Bypass:  Buffered bypass

Controls

Pedal switch, GUITAR/BASS switch, VINTAGE/POLY switch, DIRECT LEVEL knob, +1OCT knob, -1OCT knob, -2OCT/RANGE knob

Indicator:  CHECK indicator (Serves also as battery check indicator)

Connectors

INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DIRECT OUT jack: 1/4-inch phone type
DC IN jack

Power Supply

Alkaline battery (9 V, 6LR61 or 6LF22)
AC adaptor (PSA series: sold separately)

Current Draw:  55 mA

Expected battery life under continuous use:  Alkaline: Approx. 7 hours

*These figures will vary depending on the actual conditions of use.

Accessories

Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)

Options (sold separately)

AC adaptor: PSA series

SIZE AND WEIGHT

  • Width:  73 mm/2-7/8 inches
  • Depth:  129 mm/5-1/8 inches
  • Height:  59 mm/2-3/8 inches
  • Weight (including battery):  440 g/1 lb

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
