Squier Affinity Series Telecaster Thinline - Olympic White

Squier Affinity Series Telecaster Thinline - Olympic White



A superb gateway into the time-honored Fender family, the Squier Affinity Series Telecaster Thinline delivers legendary design and quintessential tone for today’s aspiring guitar hero. This Tele features several player-friendly refinements such as a thin and lightweight chambered body, a slim and comfortable “C”-shaped neck profile, a string-through-body bridge for optimal body resonance and sealed die-cast tuning machines with split shafts for smooth, accurate tuning and easy restringing. Loaded with dual Squier single-coil Tele pickups with 3-way switching for genre-defying sonic variety, this model is ready to accompany any player at any stage.

Features

• Thin and lightweight chambered body

• String-through-body bridge

• Slim and comfortable “C”-shaped neck profile

• Two Squier single-coil pickups

• Sealed die-cast tuning machines with split shafts


HIGHLIGHTS

STRING-THROUGH-BODY TELECASTER BRIDGE
A string-through-body bridge improves resonance through the body and increases string tension for a rock-solid feel.

SQUIER SINGLE-COIL TELECASTER PICKUPS
Voiced in-house at Fender, these Squier single-coil pickups produce crisp, articulate tone for a wide variety of styles.

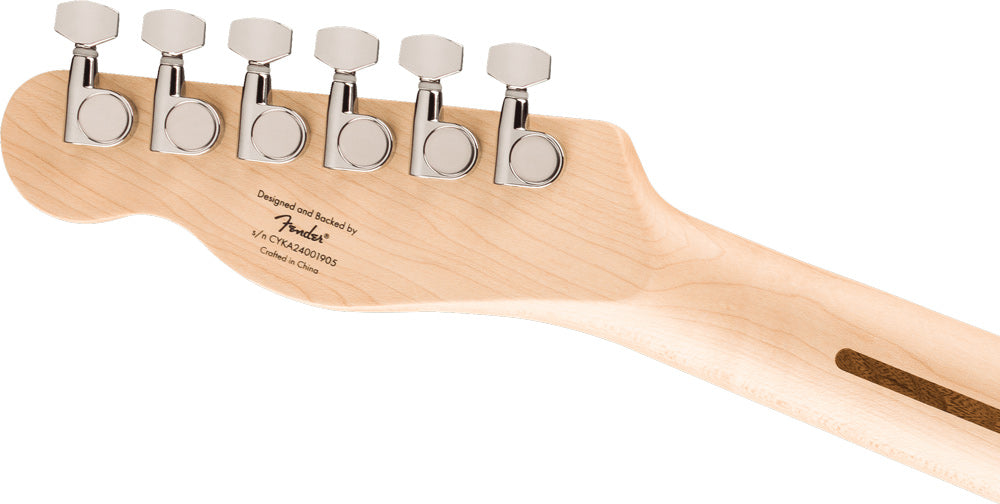

SEALED DIE-CAST TUNING MACHINES WITH SPLIT SHAFTS
Sealed die-cast tuning machines have a smooth action for accurate tuning, and the split shafts make changing strings a breeze.

Specs

General
Series:  Affinity Series
Orientation:  Right-Hand
Color:  Olympic White
Country Of Origin:  CN
Platform:  Squier Guitars

Neck
Neck Material:  Maple
Neck Finish:  Satin Urethane with Gloss Urethane Headstock Face
Neck Shape:  "C" Shape
Neck Construction:  Bolt-On
Fingerboard Radius:  9.5" (241 mm)
Fingerboard Material:  Indian Laurel
Position Inlays:  Pearloid Dot
Side Dots:  White
Number of Frets:  21
Truss Rod:  Head Adjust
String Nut:  Synthetic Bone
Nut Width:  1.65" (41.91mm)
Nut Material:  Synthetic Bone

Body
Body:  Poplar
Body Finish:  Gloss Polyurethane
Body Shape:  Telecaster®
Body Material:  Poplar

Hardware
Bridge:  6-Saddle String-Through-Body Tele® with Block Steel Saddles
Pickguard:  3-Ply Black
Pickup Covers:  Neck: Chrome; Bridge: Black
Control Knobs:  Knurled Flat-Top
Switch Tip:  Black
Hardware Finish:  Chrome
Tuning Machines:  Sealed Die-Cast with Split Shafts
String Trees:  Dual-Wing
Strings:  Nickel Plated Steel (.009-.042 Gauges)
Neck Plate:  4-Bolt Squier®
Strap Buttons:  Standard

Electronics
Bridge Pickup  Ceramic Single-Coil
Neck Pickup:  Ceramic Single-Coil
Pickup Configuration:  SS
Controls:  Master Volume, Master Tone
Switching:  3-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

Measurements
Dimensions:  4.00x15.20x43.90 IN
Shipping Weight:  9.50 LB
Fret Size:  Medium Jumbo
Scale Length:  25.5” (648 mm)
Shipping Length:  43.90 IN
Shipping Height:  4.00 IN
Shipping Width:  15.20 IN

Miscellaneous
Style:  2 Single-Coil
